YX125-K3
154FMI
LB412PK3
TD125 135CC ENGINE ULTRA VERSION GALAXY 6825RMB
TD125 120CC ENGINE PRO VERSION EHSAN 6001RMB

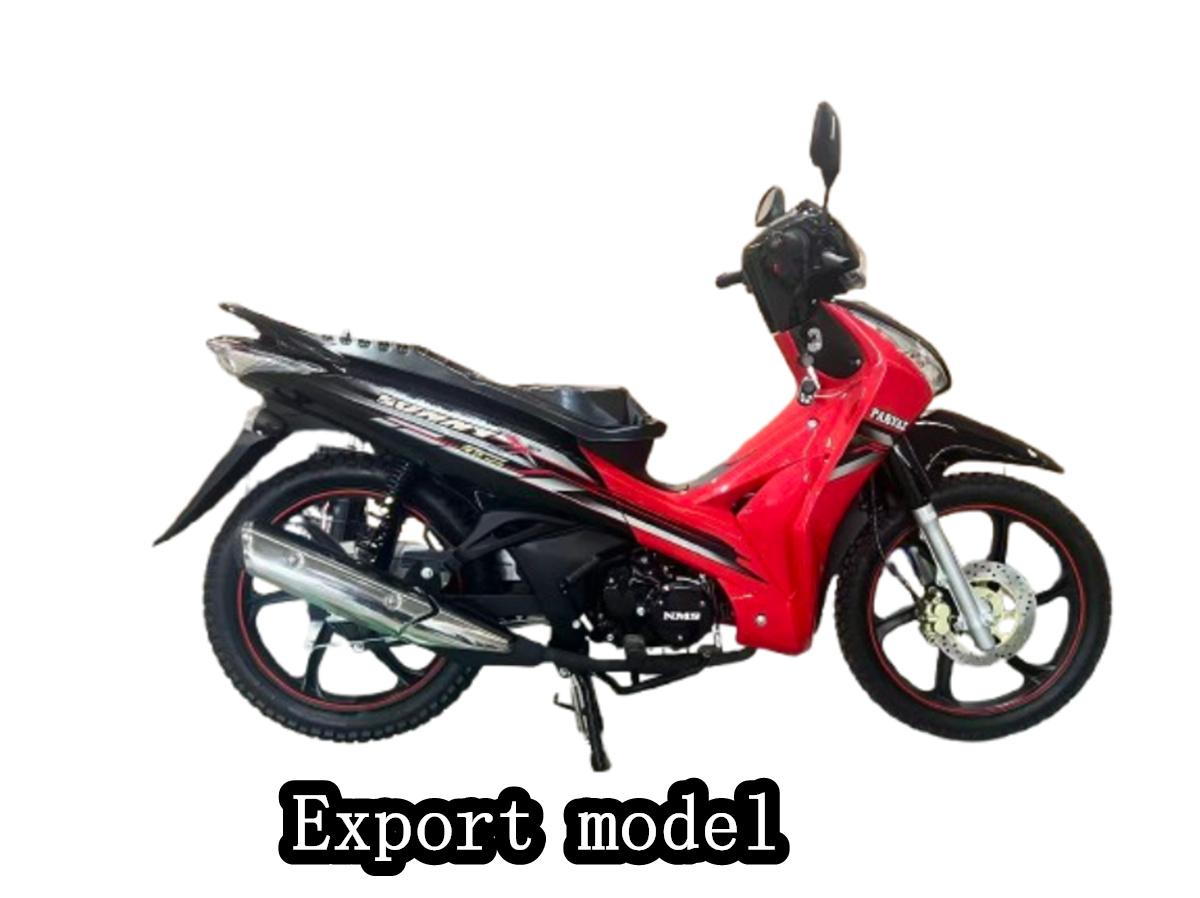

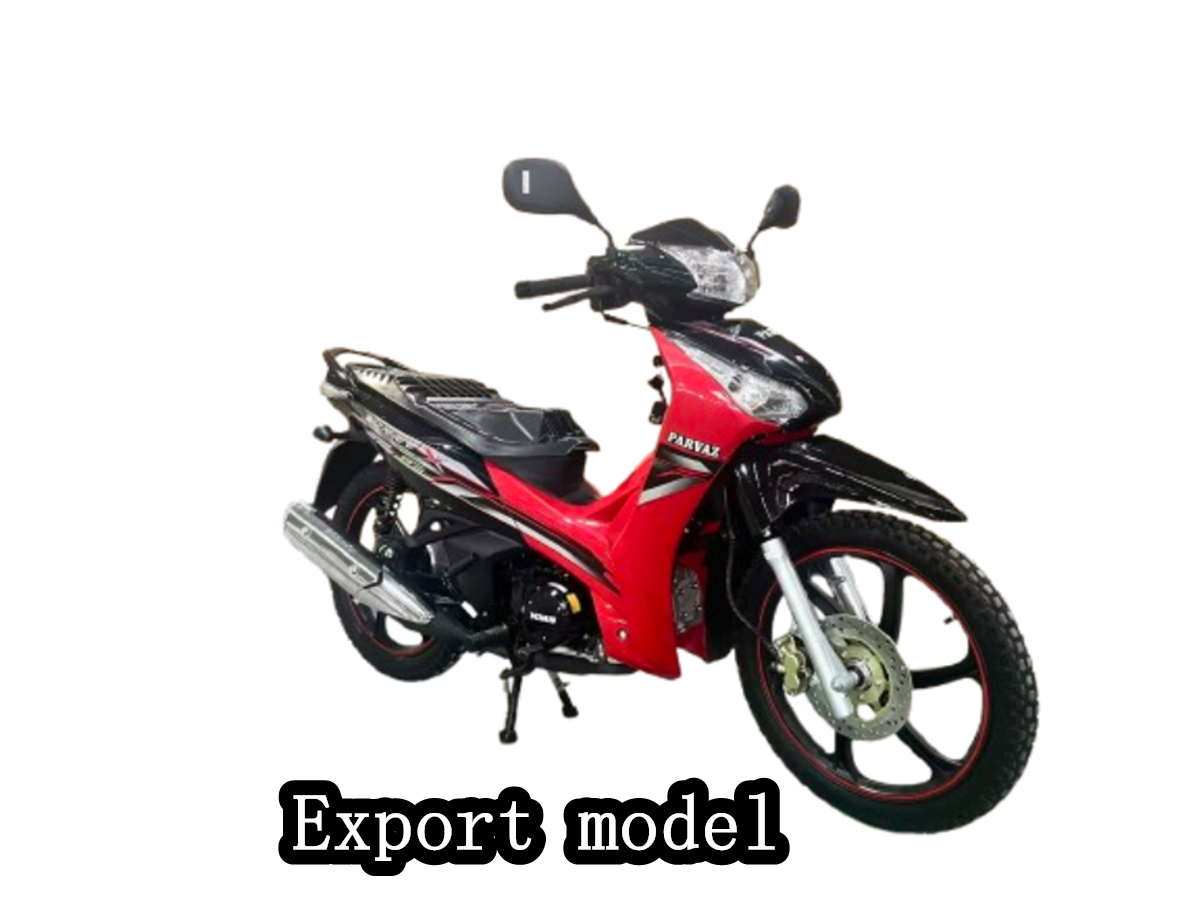

TD125 120CC ENGINE MAX VERSION PARVZA 4141RMB
T2 135CC ENGINE ULTRA VERSION SAHAR 7050RMB
ALL ABOVE MODEL EXPORT TO IRAN
| 一、specification | ||||
| English item | specification | |||
| Overall dimension (length × wide × Height) mm | 1970×700×1120mm | |||
| Wheelbase mm | 1265 | |||
| Minimum ground clearance mm | 120 | |||
| Seat cushion height mm | 770 | |||
| Operating handle return angle (left/right) | ≤48° | |||
| Minimum turning radius mm | 1870 left, 1825 right | |||
| Final transmission ratio | 14:36 | |||
| Climbing slope | 22°(≥18°) | |||
| Seats | 2 | |||
| Shift mode | Four-speed semi-rotation | |||
| Fuel tank volume L | 4.6 | |||
| Fuel type | 90# | |||
| Rated maximum load kg | 145 | |||
| Net weight kg | 96 | |||
| Curb weight Kg | 101 | |||
| Maximum load total kg | 246 | |||
| Maximum speed Km/h | 85 | |||
| Braking performance m | ≤7m/30km/h | |||
| Starting performance S | 13.73s(≤15s) | |||
| Rated power Kw/r/min | 4.5KW | |||
| Economic fuel consumption L/100Km | 1.7 | |||
| Brake | front | Disc brake | ||
| rear | Drum brake | |||
| Brake operation | front | Hand brake | ||
| rear | foot brake | |||
| wheel | Net wheel | |||
| spoke wheel size | front：1.4×17 rear ：1.6×17 | |||
| tyre | Inner and outer tyre | |||
| tyre size | front：2.50-17 rear：2.75-17 | |||
| Tyre pressure (front/rear) Kpa | 200/225 | |||
| Specification and illumination of large bulb | 12V-35W/35W ≥10000cd | |||
| Steering bulb specification | 12V-10W | |||
| Battery specification | High equipped GTX4L-BS/ semi-maintenance-free battery /114*70*86/ with electrolyte /HYOSOW | |||
| 二、 ENGINE SPECIFICATION | ||||
| Engine type | Four-stroke, air-cooled, single-cylinder, Horizontal type | |||
| Magneto type | 12V/level 6/full wave, | |||
| Stroke mm | 55.5 | |||
| Cylinder diameter mm | 52.4 | |||
| Working volume of cylinder ml | 120 | |||
| Compression ratio | 9.0：1 | |||
| Fuel grade | 90 # gasoline | |||
| Total oil capacity L | 0.8 | |||
| Spark plug model | A7RTC | |||
| Spark plug gap mm | 0.6～0.7 | |||
| Valve clearance mm | 0.05±0.02mm | |||
| Starting mode | Electric start/kick start | |||
| Lubricating oil grade | 15W/40 | |||
| Lubrication method | Splash pressure lubrication | |||
| Ignition mode | C.D.I | |||
| Carburetor model | PZ20 | |||
| Carburetor type | Horizontal suction plunger type | |||
| Transmission type | Usually engaged, four gear reciprocating | |||
| Clutch type | Multi-disc oil bath manual clutch | |||
| Primary gear ratio | 4.058 | |||
| Gearshift ratio | i1=2.833 , i2=1.761. i3=1.238, i4=0.958 | |||
| Output transmission mode | Chain drive | |||
| Rotation direction of output shaft | Face the output shaft and rotate counterclockwise | |||
| Overall dimension (length × wide × Height) mm | 460×300×260 | |||
| Net mass Kg | 22±1 | |||
| Magneto ignition advance angle | 27º±2º | |||
| Rated power and corresponding speed kW (r/min ± 5%) | 4.8KW/7500±500r/min | |||
| Maximum net power and corresponding speed kW (r/min ± 5%) | 5.0Kw/8000r/min | |||
| Maximum torque and corresponding speed N.m (r/min ± 5%) | 7.0N.m/5000r/min | |||
| The minimum fuel consumption rate is less than g/Kw. h | 367g/KW.h | |||
